co2 laser marker TX020        LASER MARKING

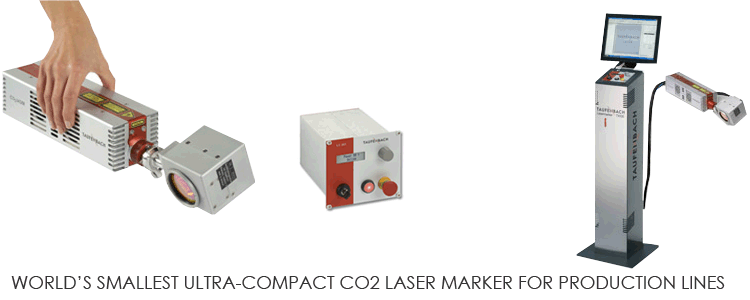

WORLD'S SMALLEST ULTRA-COMPACT CO2 LASER MARKER

The Lasermarker TX020 is designed for coding with high cycle time rates at the production lines.
It is basically equipped with an integrated PC and a 15" inch touchscreen monitor.
The system is network compatible and different software-versions are available.


Lasermarker TX020 Ultra-Compact CO2 Laser Marking System for Production Lines
Features Laser marking system for production lines
 Ultra-compact
Marking unit 2.5 kg
An alternative to ink based marking
Marking speed up to 1,700 characters per second
20 Watt laser power
Air cooled system
Novel safety concept
Easy to maintain
Intergrated PC
Window operating system
Open for alternative operating systems
Interfaces
 Ethernet, USB and RS232
 External Triggering
2-channel interlock circuit
Superordinated emergency stop
Interface for 2 encoder
Options Marking unit water or compressed air cooled
Marking unit IP65
Mark on the fly
Pointing laser
Touch screen
Various marking software
Applications Non-contact marking in production lines
Laser material processing applications
